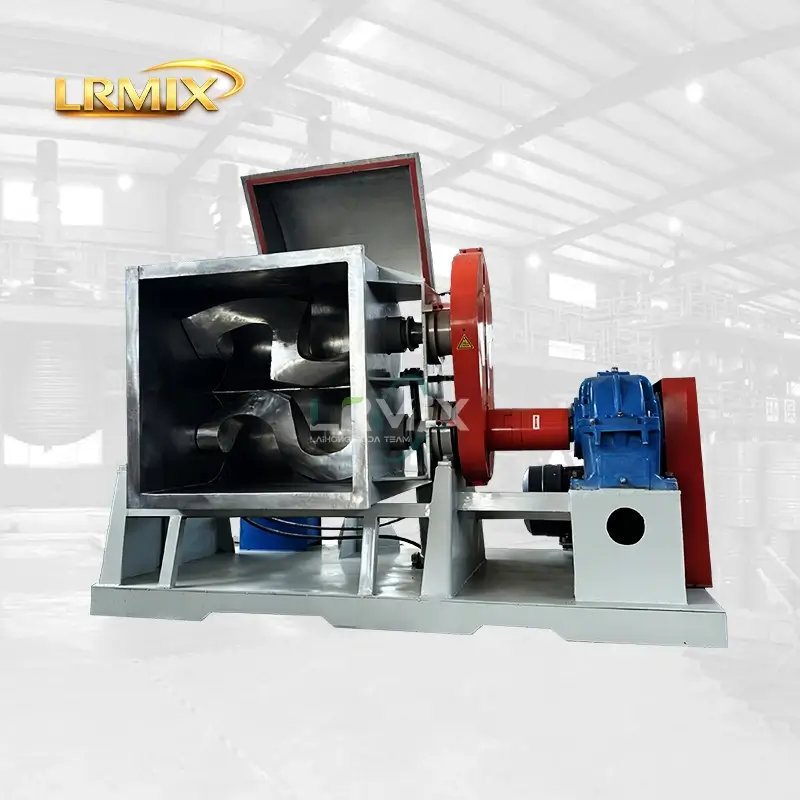

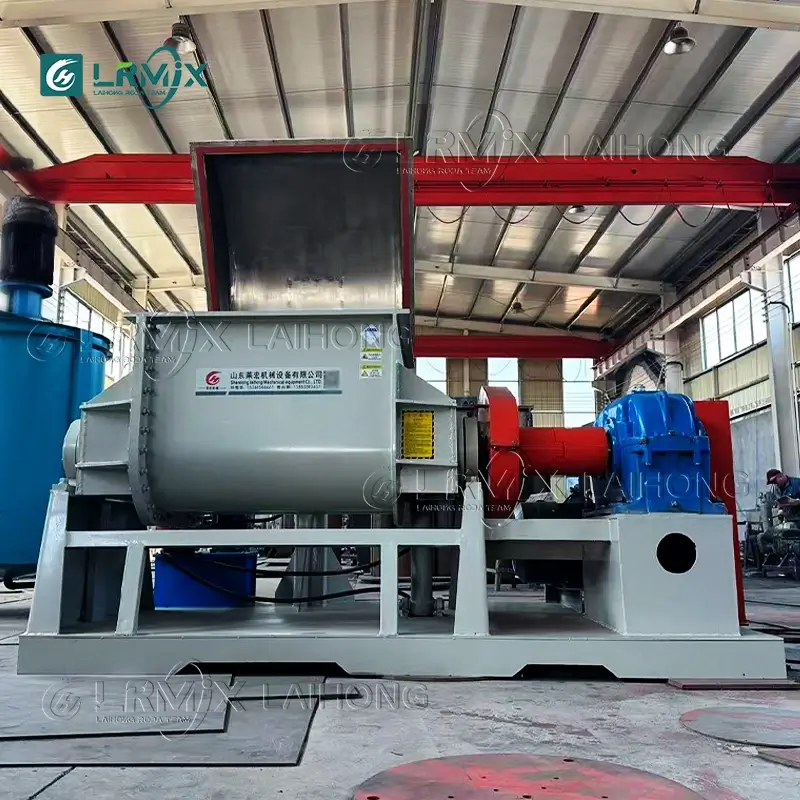

500L SS304 Sigma Kneader Machine | LRMIX

The LRMIX 500L SS304 Sigma Kneader is a heavy-duty batch mixing machine built for high-viscosity materials that demand intensive kneading action, contamination-free processing and reliable production-scale performance. With SS304 stainless steel product-contact surfaces, a 37kW main motor, ZLY hard-tooth face gear reducer and hydraulic tilt discharge, this machine is configured for manufacturers who need consistent compound quality batch after batch — without compromise on materials or construction.

Technical Specifications

Why SS304 Stainless Steel for High-Viscosity Mixing

Material purity is not just a specification point — it is a production reality. Carbon steel contact surfaces oxidise progressively under mixing conditions. For silicone rubber compounding, ceramic clay preparation and colour masterbatch mixing, even trace iron contamination changes the outcome: colour shift in masterbatch, surface defects in ceramic bodies, and quality inconsistencies in silicone compound that only appear after vulcanisation.

SS304 stainless steel eliminates this risk at the source. The passive oxide layer on SS304 is chemically stable under normal mixing conditions and does not transfer to the processed material. For manufacturers running multiple formulations or colour variants through the same machine, this is not optional — it is a basic requirement.

Key Features

ZLY Hard-Tooth Face Gear Reducer — Built for Peak Torque

At the start of every batch, stiff, cold compound resists blade movement with maximum force. This initial torque spike — which can reach three to four times the steady-state running torque — is where underpowered reducers fail. The ZLY series uses carburised and quenched gears at HRC 58–62 surface hardness, delivering 40% higher load capacity than standard soft-tooth reducers at equivalent size. This is the correct specification for sustained heavy-duty sigma kneading, not an optional upgrade.

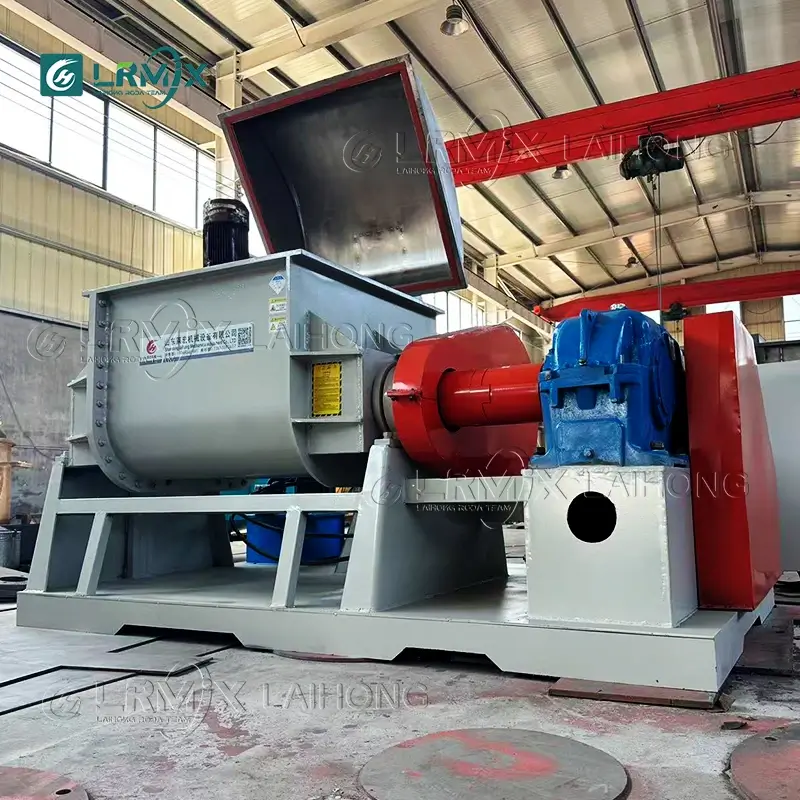

Hydraulic Tilt Discharge 130° — Fast, Clean, Consistent

At 500L working capacity, manual discharge is neither practical nor consistent. The hydraulic tilt system tilts the vessel to 130°, allowing compound to flow out under gravity in 4–6 minutes with minimal residue. Batch-to-batch discharge weight is consistent. Operator contact with the compound is eliminated. Manual discharge of the same batch by two operators would take 25–35 minutes.

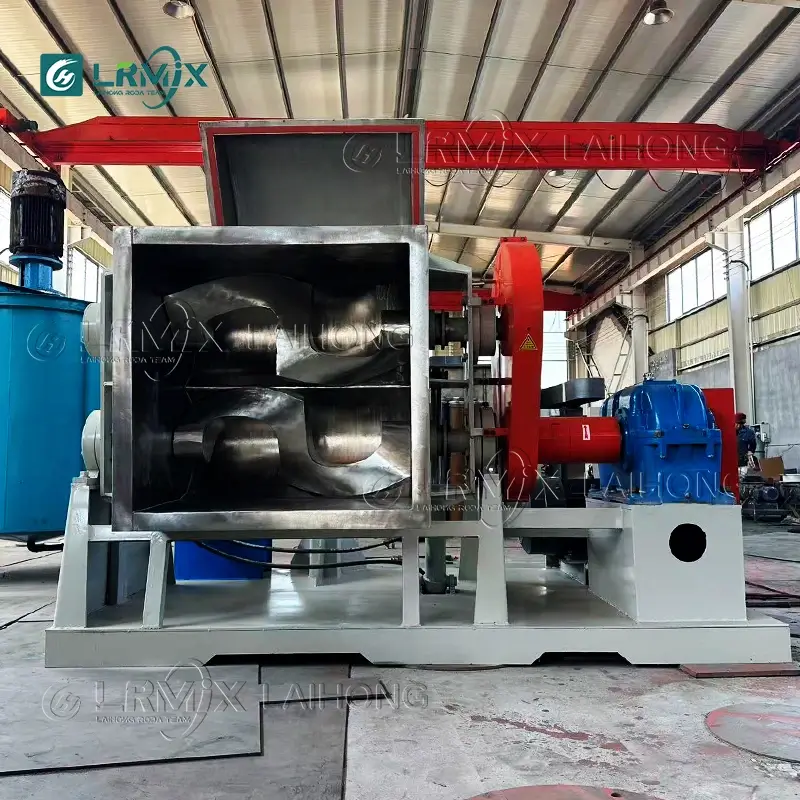

Differential Blade Speed — Uniform Distribution Throughout

The two sigma blades rotate at different speeds, creating an asymmetric flow pattern that continuously renews the shear zone across the full chamber volume. There are no dead spots. Fillers, additives and processing aids are distributed uniformly throughout every batch — this is the mechanical principle that makes sigma kneaders the standard for high-viscosity compound mixing worldwide.

Single-Layer Vessel — Correct for Ambient-Temperature Processing

This machine is specified without heating jacket and without vacuum. For silicone rubber processing where temperature is controlled externally, ceramic clay preparation at ambient conditions, and colour masterbatch compounding that does not require degassing, this is the correct configuration. Adding systems that the process does not require increases capital cost, maintenance burden and failure points without any benefit to compound quality.

Suitable Materials and Applications

This 500L SS304 sigma kneader is used for the following materials and production applications:

Silicone Rubber (HTV Compound)

High-temperature vulcanisation silicone rubber compounding — incorporating fumed silica, functional fillers, pigments and processing aids into polydimethylsiloxane base polymer. The sigma kneader is the industry-standard equipment for this process. This configuration is suitable for producers managing temperature externally and whose product specification does not require vacuum degassing.

Ceramic Clay Body Preparation

Traditional pottery, stoneware, industrial ceramics and refractory materials. The sigma kneader develops plasticity in ceramic bodies through compression and folding action — a result that ribbon blenders and paddle mixers cannot replicate. Uniform water and binder distribution throughout the clay matrix is achieved within a single batch cycle.

Colour Masterbatch Mixing

Pigment and dye dispersion into polymer carrier bases — polyethylene, polypropylene, EVA and similar. SS304 contact surfaces prevent iron contamination that causes colour shift in masterbatch, particularly in light and transparent formulations. The differential blade speed ensures complete pigment deagglomeration and uniform colour throughout the batch.

Additional Applications

Carbon paste and electrode compounds — graphite and carbon black formulations Rubber compounds — general industrial rubber mixing and compounding Adhesive base compounds — structural adhesive and sealant base at ambient temperature BMC and DMC compound mixing — glass-fibre reinforced thermoset compounds

Industry Application Guides

Silicone Rubber Kneader Machine

Ceramic and Clay Mixer Kneader

Adhesive and Sealant Mixer Machine

Why Choose LRMIX

LRMIX is the international brand of Shandong Laihong Machinery Equipment Co., Ltd, a sigma kneader and industrial mixer manufacturer with over 15 years of production experience. Equipment is exported to manufacturers in 40+ countries across Southeast Asia, South Asia, the Middle East, Europe and the Americas. All machines are produced at our 4,000m² factory in Shandong, China and supplied factory direct.
