Adhesive & Sealant Mixer Machine
Planetary Mixers, Multi-Shaft Mixers & Sigma Kneaders for Adhesive and Sealant Manufacturing
Types of Adhesives & Sealants Processed by LRMIX Equipment
Adhesives and sealants span an enormous range of chemistries and viscosities. LRMIX mixing equipment is used across the following product categories:
Equipment Selection Guide: Matching Mixer to Viscosity
According to guidelines published by the Adhesive and Sealant Council and Charles Ross & Son Company, mixer selection for adhesive production is primarily determined by viscosity profile and required shear input. The following table summarizes the recommended equipment for each viscosity range:
| Adhesive / Sealant Type | Typical Viscosity | Recommended Equipment |
|---|---|---|
| Acrylic emulsions, latex adhesives | 1,000 – 20,000 cps | Planetary Mixer |
| PU adhesives, MS polymer sealants | 20,000 – 200,000 cps | Planetary Mixer |
| Filled epoxy pastes, silicone sealants | 200,000 – 2,000,000 cps | Planetary Mixer / Multi-Shaft Mixer |
| High-solids epoxy, structural adhesive pastes | 500,000 – 6,000,000 cps | Multi-Shaft Mixer |
| Rubber compounds, hot melt, semi-solid adhesives | Non-flowing paste | Sigma Kneader |
Recommended Equipment for Adhesive & Sealant Production
LRMIX offers three complementary mixing solutions that together cover the complete viscosity range of adhesive and sealant manufacturing:

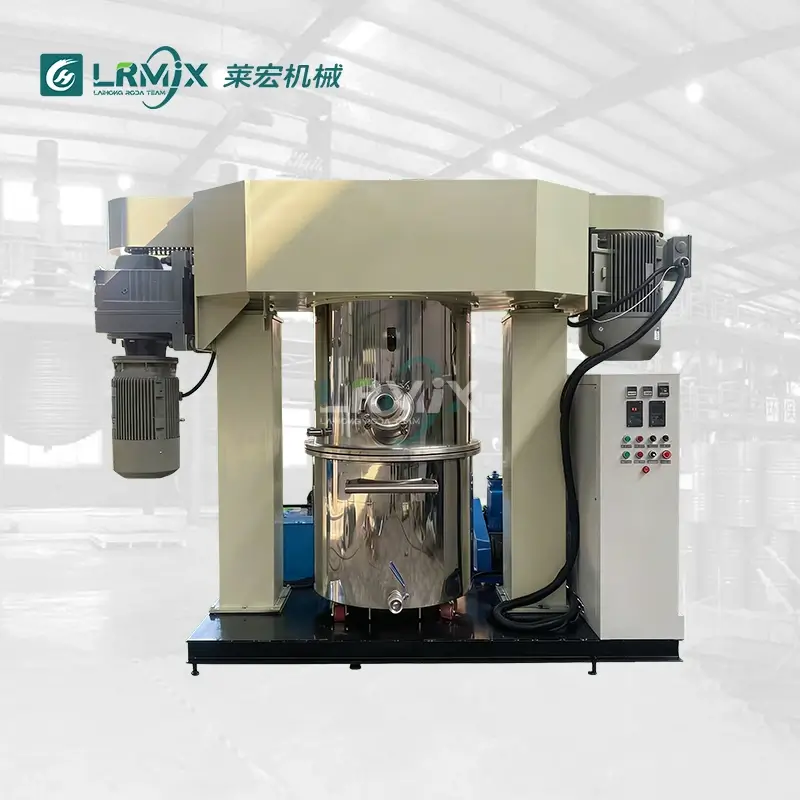

Planetary Mixer
The industry-standard machine for medium to high-viscosity adhesives and sealants. Two planetary blades rotate on their own axes while revolving around the vessel — passing through every point in the product zone in just 36 revolutions, ensuring complete, uniform mixing with no dead zones. Handles viscosities up to 6 million cps when equipped with HV blades. Vacuum degassing removes entrapped air that would otherwise compromise bond strength and shelf stability.
- Capacity: 1L to 2000L
- Paddle, twist, HV blade options
- Vacuum system for full degassing
- Heating & cooling jacket
- Suitable for PU, MS polymer, epoxy, silicone
- Variable speed drive
Multi-Shaft Mixer
For high-solids adhesive pastes and sealants that require both bulk movement and high-shear dispersion simultaneously. The multi-shaft mixer combines a high-speed dispersing disc with a low-speed anchor agitator — the anchor continuously feeds dense, viscous material toward the disperser blade, eliminating dead zones and ensuring thorough incorporation of fillers and additives in highly viscous formulations.
- Dual or triple shaft configurations
- High-speed disperser + anchor agitator
- Handles up to 500,000 cps and above
- Heating & cooling jacket available
- Vacuum option for defoaming
- Suitable for filled epoxy, structural pastes
Sigma Kneader
For semi-solid and non-flowing adhesive compounds — including hot melt adhesives, rubber-based cements, high-filler epoxy pastes and reactive adhesive compounds — the sigma kneader delivers the intensive kneading and shearing force needed to fully incorporate solid fillers, homogenize rubber polymers, and produce a uniform, consistent compound that cannot be processed in a conventional planetary or multi-shaft mixer.
- Capacity: 5L to 5000L
- Sigma, naben or dispersion blade options
- Electric heating up to 200°C
- Vacuum system available
- Screw or tilt discharge
- Suitable for hot melt, rubber, filled epoxy
Browse Our Adhesive & Sealant Mixing Equipment
Explore LRMIX equipment categories for adhesive and sealant production:
Why Choose LRMIX for Adhesive & Sealant Mixing Equipment?
Get a Free Quote for Your Adhesive & Sealant Mixer
Tell us your adhesive type, viscosity range and required batch capacity.
Our engineering team will recommend the most suitable mixing solution.
