600L SS304 Sigma Kneader Machine | Hydraulic Tilt

Not every sigma kneader application requires heating, cooling or vacuum. For a significant range of high-viscosity mixing processes, the correct specification is simpler — and more cost-effective: a heavy-duty vessel, SS304 stainless steel contact surfaces, powerful drive system, and clean hydraulic tilt discharge.

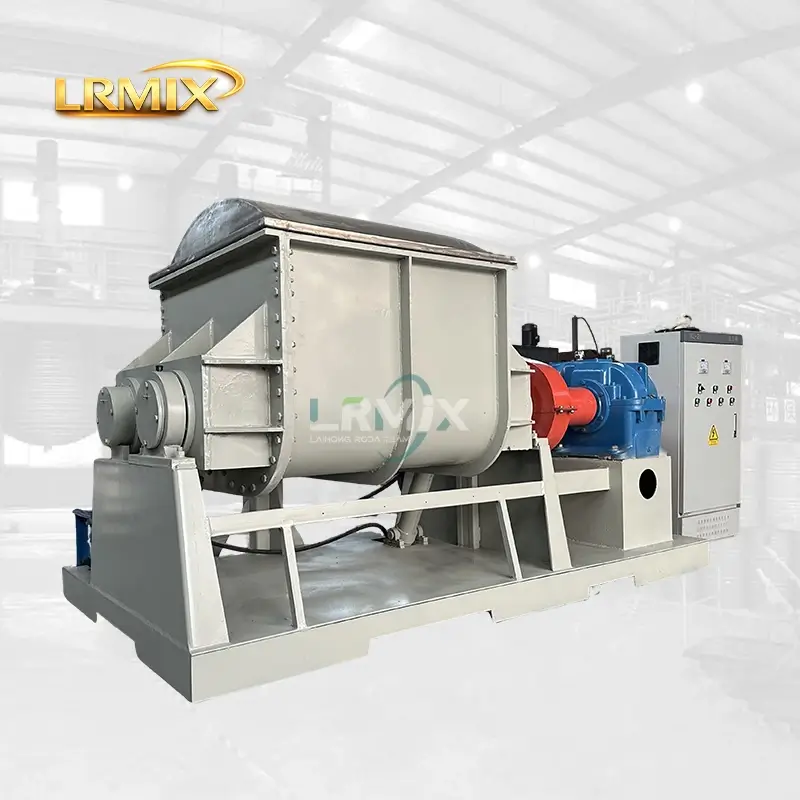

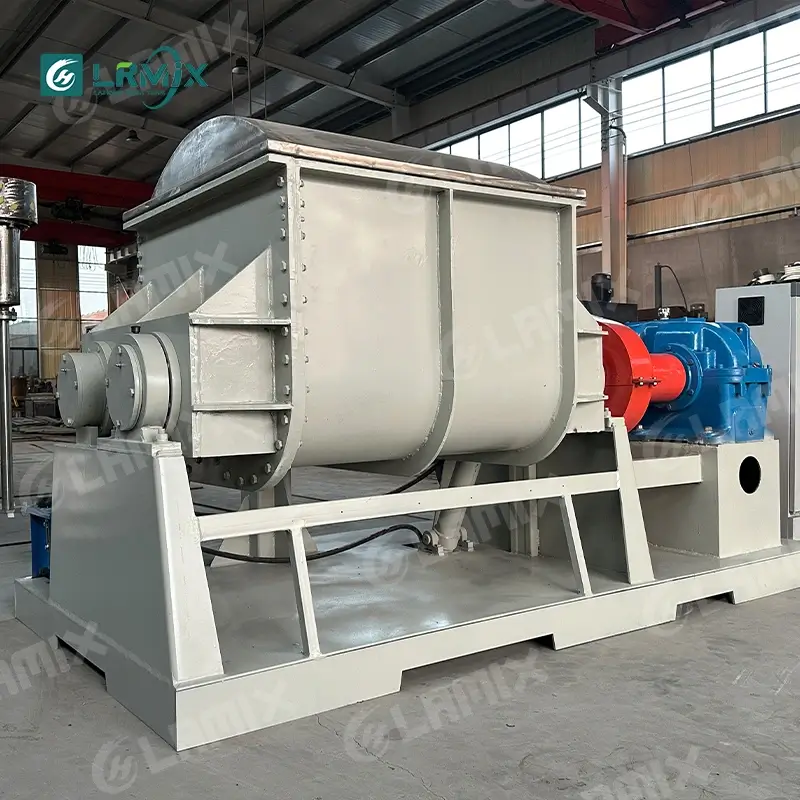

This is the LRMIX 600L SS304 Sigma Kneader — built for exactly that requirement.

Who Actually Needs This Configuration?

Before specifying a vacuum system or heating jacket, the right question is: does your process actually require them?

Vacuum degassing is essential when your material entraps air that causes defects in the finished product — silicone rubber with fumed silica, medical-grade compounds, technical ceramics. But many high-viscosity applications have no such requirement.

Heating or cooling jackets are necessary when your process requires a specific temperature range — gum base softening, peroxide vulcanisation control, hot melt adhesive processing. Many applications process at ambient temperature and simply do not need jacket temperature control.

Specifying vacuum and heating where they are not needed adds cost, complexity and maintenance points without any process benefit. The 600L SS304 configuration is the right choice when your process requires intensive mixing at ambient temperature — with the contamination protection of stainless steel contact surfaces.

Typical applications include:

— Rubber compound mixing where temperature is controlled externally — Adhesive and sealant base preparation at ambient temperature — Ceramic clay body homogenisation with external temperature management — Carbon paste and electrode compound mixing — Pigment paste and colour concentrate preparation — Thermoplastic elastomer and EVA compound mixing

Why SS304 Stainless Steel — Not Carbon Steel

The choice between carbon steel and SS304 stainless steel for product-contact surfaces is not simply about corrosion resistance. It affects product purity, equipment longevity and cleaning efficiency.

Carbon steel contact surfaces oxidise over time. For colour-sensitive materials, transparent compounds or any product where metal contamination affects quality, this is a direct product quality issue — not just an aesthetic one. A small quantity of iron oxide contamination in a silicone colour masterbatch, for example, can cause visible discolouration across an entire production batch.

SS304 stainless steel eliminates this risk entirely. The passive oxide layer on SS304 is stable, non-reactive and does not transfer to the mixed material under normal operating conditions.

The mirror-polished interior surface of this unit — Ra ≤ 0.4μm — provides two additional benefits. First, material release: high-viscosity compounds disengage more completely from a polished surface, reducing residue at discharge and making cleaning faster and more thorough. Second, contamination control: a smooth surface has no microscopic crevices for material to accumulate between batches.

For manufacturers processing multiple formulations or colours in the same equipment, the mirror-polished SS304 interior is not a luxury — it is a practical production requirement.

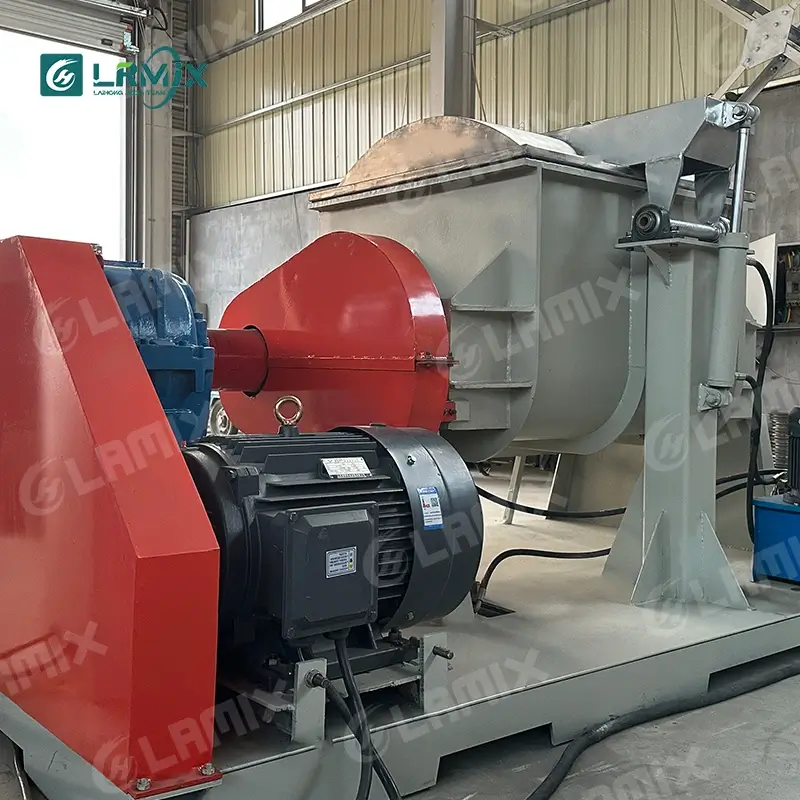

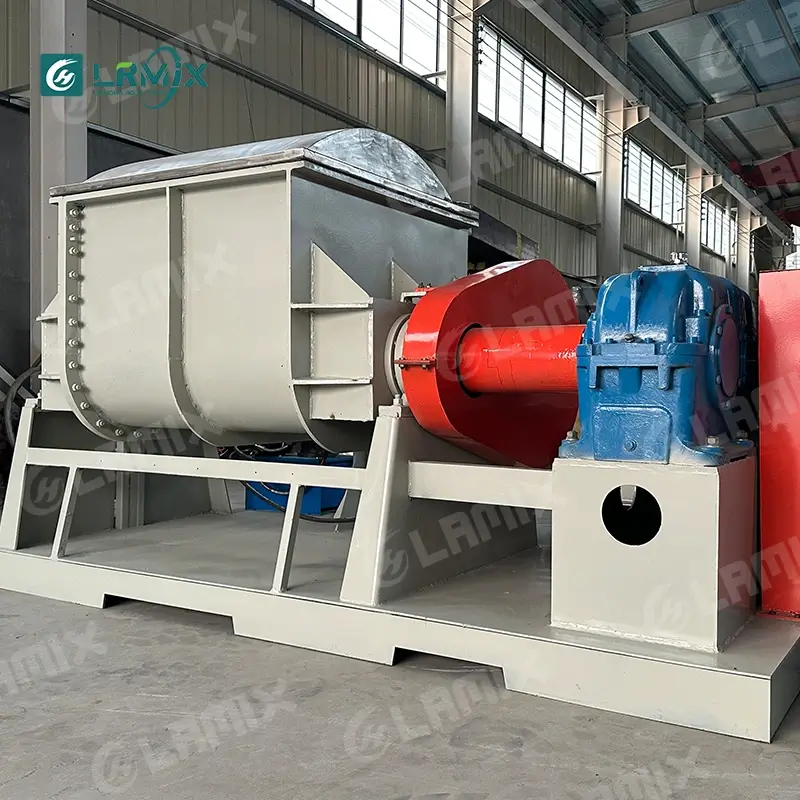

The Drive System: Built for Sustained Heavy Loading

The sigma kneader drive system experiences loading conditions that differ fundamentally from other industrial mixers. At the start of each batch, stiff, cold compound resists blade movement with maximum force — creating peak torque spikes that can be three to four times the running torque. The drive system must absorb this repeated shock loading without accelerated wear.

This unit uses a hard-tooth face gear reducer with carburised and quenched gear surfaces. Gear surface hardness of HRC 58–62 delivers 40% higher load capacity compared to standard soft-tooth reducers at equivalent physical size. This is the correct specification for sustained heavy-duty kneading — not a premium option.

The counter-rotating sigma blades run at differential speeds, creating an asymmetric flow pattern that continuously renews the shear zone throughout the mixing chamber. The result is uniform distribution of all components — fillers, additives, processing aids — with no dead zones.

Hydraulic Tilt Discharge — 130°

At 600L working capacity, manual discharge of high-viscosity compound is not a practical option. The hydraulic tilt system tilts the vessel to 130°, allowing compound to flow out under gravity with minimal residue and no manual assistance.

Discharge time for most high-viscosity compounds: 3–5 minutes. Manual discharge equivalent: 20–30 minutes with two operators.

Beyond time saving, hydraulic tilt discharge produces more consistent batch weights — the vessel empties to the same residue level every cycle — and eliminates the contamination risk of manual tools contacting the product.

Technical Specifications

Parameter	Specification
Effective Volume	600 Litres
Blade Type	Sigma Z-blade, Counter-Rotating, Differential Speed
Discharge	Hydraulic Tilt 130°
Contact Parts	SS304 Stainless Steel, Mirror-Polished Ra ≤ 0.4μm
Vessel Jacket	Single layer — no heating or cooling
Vacuum System	Not included
Gear Reducer	Hard-Tooth Face, HRC 58–62
Certification	CE
Custom Options	Heating jacket, vacuum, SS316L, explosion-proof available

This Configuration vs Adding Heating and Vacuum

A common question: should I add heating and vacuum now, even if I don’t currently need them?

The honest answer is no — unless your process specifically requires them. Adding unused systems increases capital cost, adds maintenance requirements and introduces failure points that reduce overall equipment reliability. If your process changes and you later need heating or vacuum capability, a new machine specified correctly for that process is the right solution.

If you are unsure whether your application requires vacuum or heating, contact us before specifying. We will give you an honest assessment based on your material and process — not an upsell.
