LaiHong Iron Powder Sigma Mixer Equipment Introduction
The LaiHong Iron Powder Sigma Mixer is a specialized kneader designed for mixing, kneading, breaking, dispersion, and re-polymerization of high-viscosity, flammable, and explosive materials such as iron powders. It is widely used in industries like chemicals, metallurgy, and powder metallurgy, providing optimal performance for iron powder, alloy powder, and magnetic materials.

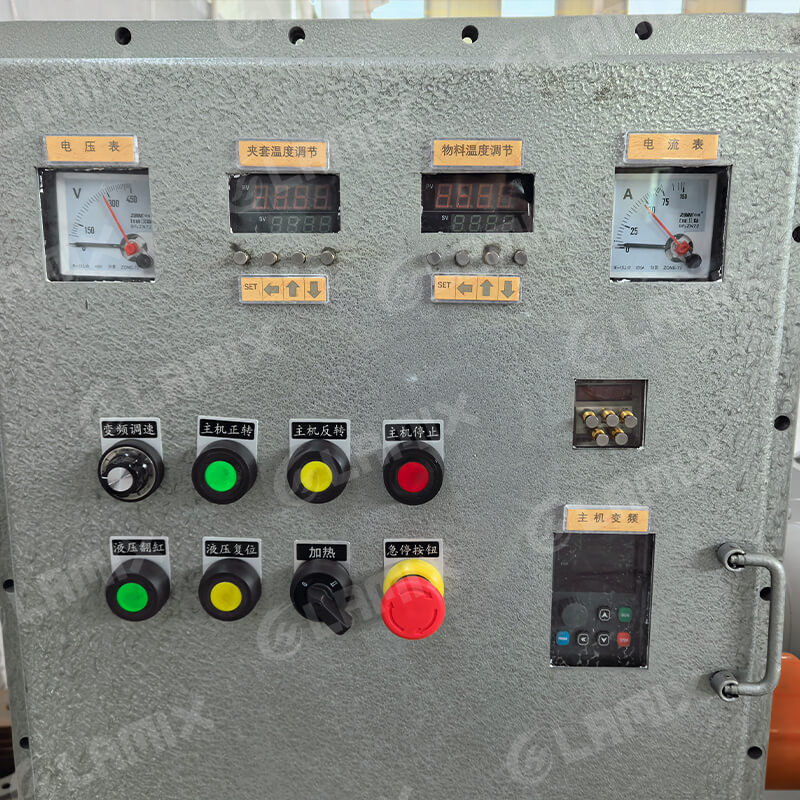

This machine is equipped with an electric heating system to ensure that materials are processed at the ideal temperature. All critical components—including the motor, electrical cabinet, solenoid valves, and wiring—are designed with explosion-proof features, effectively preventing sparks and explosion risks, ensuring maximum operational safety.
Convenient and Safe Operation
The LaiHong iron powder kneader mixer features an independent explosion-proof hydraulic system, enabling smooth opening, tilting, and closing of the mixing chamber. The lid opening is also controlled hydraulically for easy and safe material discharge. The entire system meets the highest explosion-proof standards to protect both operators and equipment.
Flexible Configurations
At LaiHong, we understand that every production process has unique demands. Our iron powder kneaders can be customized with electric heating, cooling systems, explosion-proof vacuum functions, and more. The transmission system uses an elastic coupling connected to a reducer, which drives the two Sigma blades at differential speeds to ensure thorough mixing of high-viscosity materials. A frequency converter can also be integrated for precise speed control.
Standard Design (Customizable)

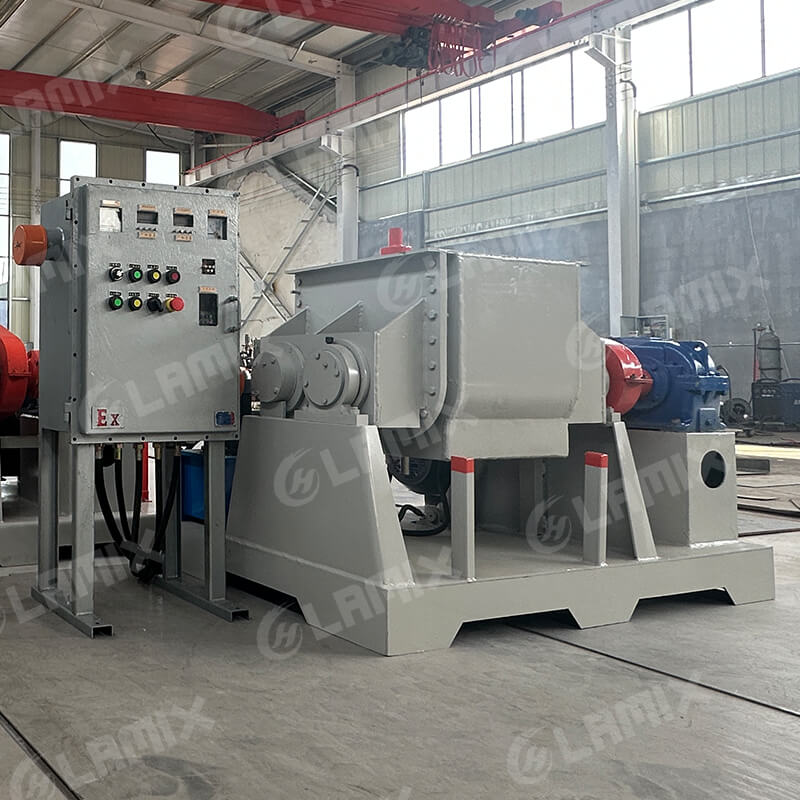

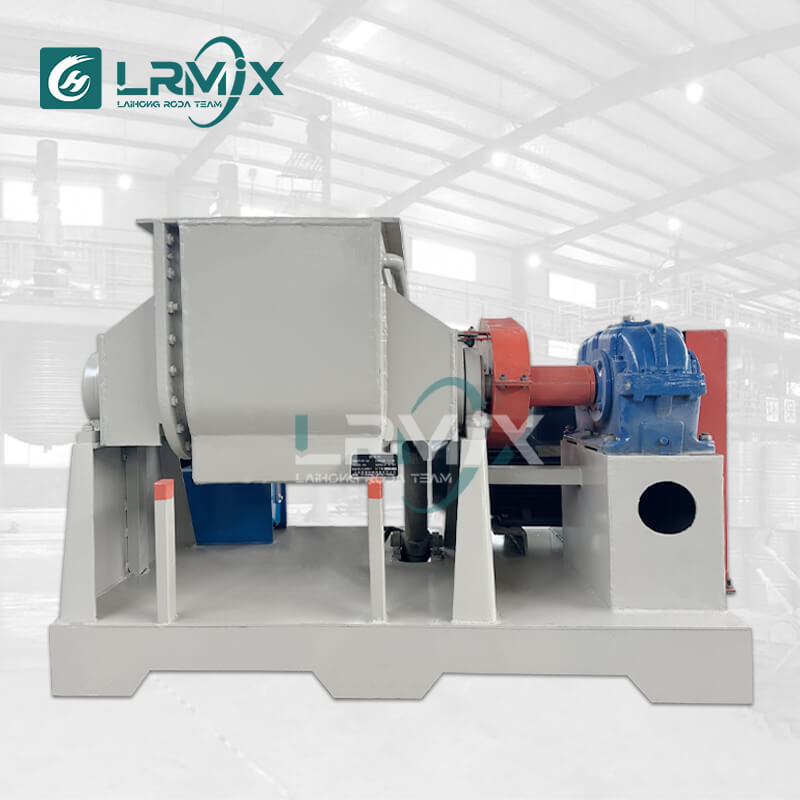

The LaiHong explosion-proof sigma mixer consists of a mixing chamber, robust frame support, explosion-proof hydraulic system, explosion-proof electronic control system, vacuum exhaust system, and twin Sigma blades driven by independent motors. The differential motion of the blades transforms dense iron powder pastes into a uniform and fine mixture.
Why Choose LaiHong Explosion-Proof Kneaders?
LaiHong Machinery has extensive experience in providing high-quality kneader mixers for processing high-viscosity, high-risk materials. Our iron powder sigma mixers deliver reliable, consistent results while ensuring the highest safety standards. Whether you need a standard model or a fully customized solution, LaiHong is committed to optimizing your production process.
Product Parameters
| Model | Capacity（L） | Power（kw） | Speed （rpm） | Function | Vacuum（MPA） | Overall Size L×W×H（mm） | Discharg Method |
| TNH-1-5 | 1-5 | 0.75-2.2 | 33、23 | Heating or cooling jacket | -0.094 | 1000×500×400 | Hydraulic cylinder flip
Lower discharge
Lower screw extrusion |
| TNH-10-30 | 10-30 | 1.5-3 | 35、23 | 1200×600×550 | |||
| NH-50 | 50 | 3-4 | 34、22 | 1500×750×1150 | |||
| NH-100 | 100 | 5.5-7.5 | 33、21 | 1750×1000×1250 | |||
| NH-200 | 200 | 11-15 | 36、21 | 2000×1350×1250 | |||
| NH-300 | 300 | 15+ | 36、21 | 2300×1450×1400 | |||
| NH-500 | 500 | 22+ | 36、21 | 2600×1650×1500 | |||
| NH-1000 | 1000 | 55-150 | 33、24 | custom made |
FAQ
- Q: Why choose us?
A: 1.We have over 10 years of experience in the chemical and food machinery manufacturing industry.
2.Our professional team provides comprehensive pre-sales consultation and after-sales support.
3.Our high-quality equipment is highly praised by customers, and we offer very competitive prices.
4.All machines come with lifetime technical support and maintenance services. - Q: How long is the delivery time?
A:The delivery time is generally 15-30 days after confirming cooperation, depending on the product type and quantity. - Q: Is customization available?
A:Yes, we can customize machines based on clients’ specific requirements, including size, material, and features. - Q: What are the payment terms?
A:We accept T/T (bank transfer) and L/C (letter of credit) as payment methods. - Q: How long is the warranty period?
A:Our machines include a one-year warranty for parts and services, with options for extended warranty available.
