Pharmaceutical Mixer Machine
GMP-Compliant Powder Blending for Drug Manufacturing
Pharmaceutical powder mixing is one of the most strictly regulated processes in manufacturing. Uniform distribution of active pharmaceutical ingredients (APIs) with excipients directly determines drug efficacy, dosage consistency and patient safety. LRMIX ribbon blenders and double-helix conical mixers are designed to meet GMP requirements, delivering high blending uniformity, minimal residue and easy clean-in-place validation.
What Pharmaceutical Powder Mixing Demands
Unlike general industrial mixing, pharmaceutical blending must satisfy strict regulatory and process requirements. Every batch must meet defined blend uniformity standards — typically a relative standard deviation (RSD) of ≤5% — before it can proceed to tablet pressing, capsule filling or packaging. Equipment must also be designed for complete discharge, easy cleaning and full validation documentation (IQ/OQ/PQ).
LRMIX pharmaceutical mixers are available in SS304 and SS316L stainless steel with internal mirror-polished surfaces (Ra ≤ 0.4μm). All contact parts meet food and pharmaceutical grade standards. Equipment can be supplied with full technical documentation packages to support IQ/OQ/PQ validation requirements.
Which Mixer Is Right for Your Pharmaceutical Application?
Two equipment types are most widely used for pharmaceutical powder blending. Selection depends on batch size, material flow characteristics, API concentration and discharge requirements.
Double-Helix Conical Mixer
Two asymmetric screws rotate on their own axes while orbiting the central axis of the conical vessel, generating four simultaneous mixing forces: convection, shear, diffusion and radial flow. This produces extremely high blend uniformity with minimal dead zones and near-complete discharge — ideal for high-value API blending where material loss must be minimised.
- Blend uniformity RSD ≤ 3% achievable
- Near-complete discharge — minimal product loss
- Gentle mixing action — preserves fragile granules
- Suitable for filling levels as low as 10%
- Available in SS304 / SS316L with mirror polish
- Capacities: 50L to 5,000L
Horizontal Ribbon Blender
Counter-rotating inner and outer helical ribbons drive materials in opposing axial and radial directions simultaneously within a U-shaped trough, achieving convective mixing across the full batch volume. Ribbon blenders excel at large-batch dry powder blending, wet powder mixing and addition of small quantities of liquid binders or lubricants (e.g. magnesium stearate) to powder bulk.
- High throughput — ideal for large batch production
- Effective for both free-flowing and cohesive powders
- Bottom discharge valve for complete emptying
- Optional spray nozzle for liquid addition
- Available with heating or cooling jacket
- Capacities: 100L to 10,000L
Recommended LRMIX Pharmaceutical Mixers
2000L Double-Helix Conical Mixer
Large-capacity pharmaceutical-grade conical mixer. Four-motion blending action delivers exceptional API uniformity with minimal residue and easy full discharge.
View Details
3000L Industrial Horizontal Ribbon Mixer
Heavy-duty ribbon blender for large-batch pharmaceutical powder and granule blending. Counter-rotating ribbons ensure uniform mixing across the full batch volume.
View Details

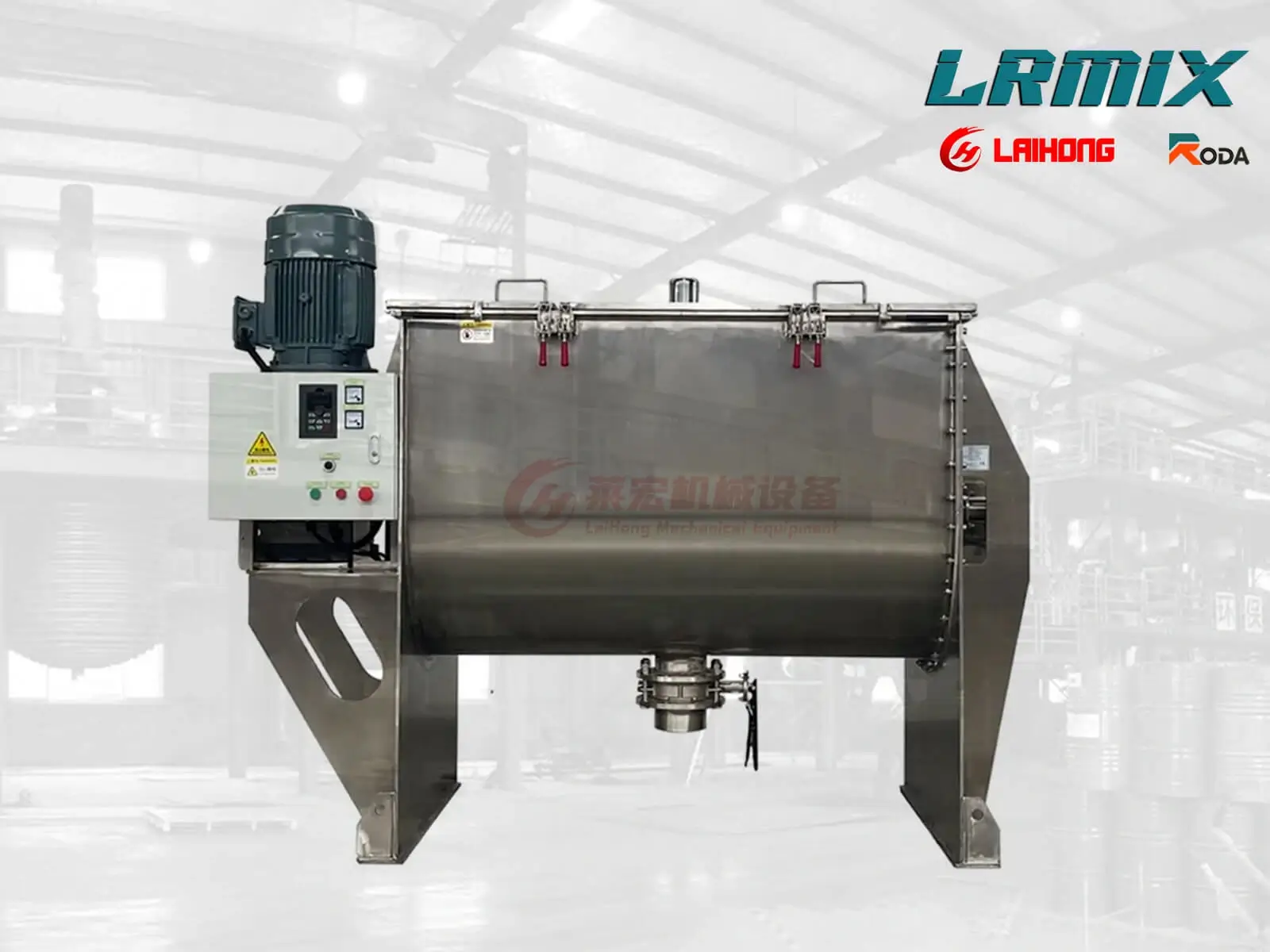

LRMIX Ribbon Blender Range
Full range of horizontal ribbon blenders from 100L to 10,000L. Standard, jacketed, vacuum and GMP-grade configurations available for pharmaceutical applications.
View All ModelsWhy Pharmaceutical Manufacturers Choose LRMIX
Need a GMP-Compliant Pharmaceutical Mixer?
Tell us your material, batch size and GMP requirements.
LRMIX will recommend the most suitable mixer configuration — factory direct.
