Paint & Coating Mixer Machine
High-Speed Dispersers & Multi-Shaft Mixers for Paint, Coating and Varnish Production
What Types of Paint & Coating Can LRMIX Equipment Produce?
LRMIX dispersers and multi-shaft mixers are used across a wide range of paint, coating and construction chemical formulations:
Selecting the Right Mixer: Viscosity Is the Key Factor
According to industry guidelines published by PCI Magazine and Charles Ross & Son Company, the high-speed disperser operates most effectively in the viscosity range of 1,000–50,000 cps — covering the vast majority of standard paint and coating formulations. For higher viscosity mill bases and specialty coatings, multi-shaft mixing is required:
| Material Type | Typical Viscosity | Recommended Equipment |
|---|---|---|
| Latex paint, emulsion paint | 1,000 – 10,000 cps | High-Speed Disperser |
| Industrial coatings, primers | 5,000 – 30,000 cps | High-Speed Disperser |
| Epoxy floor coating, waterproof coating | 10,000 – 80,000 cps | High-Speed Disperser / Multi-Shaft |
| High-viscosity mill base, paste coatings | 80,000 – 500,000 cps | Multi-Shaft Mixer |
| Putty, thick texture coating | 500,000 cps+ | Multi-Shaft Mixer |
Recommended Equipment for Paint & Coating Production
LRMIX offers two complementary mixing solutions that cover the full viscosity spectrum of paint and coating production:

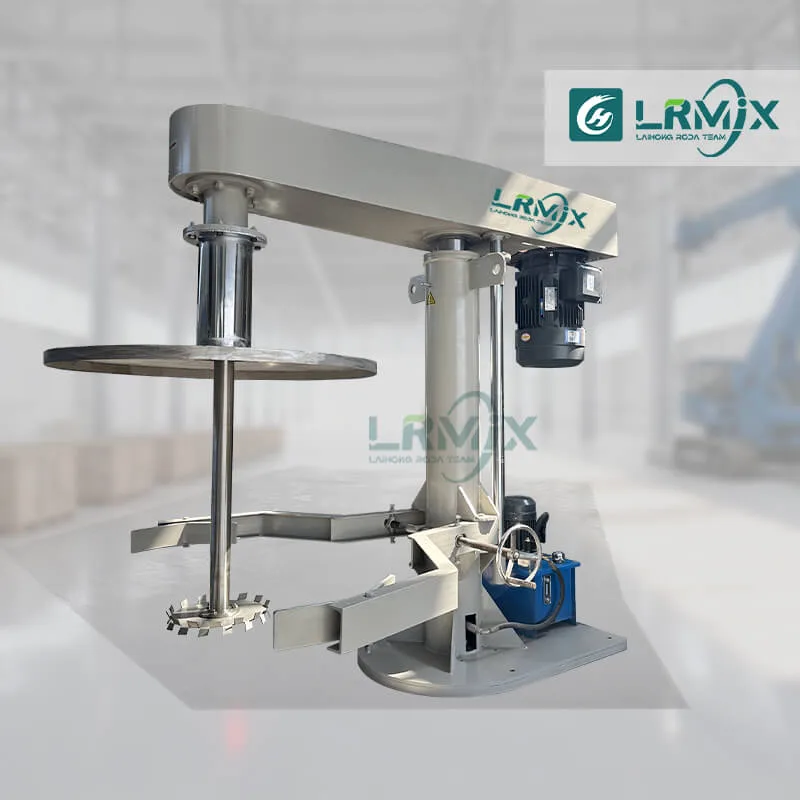

High-Speed Disperser
The high-speed disperser is the standard production machine for the paint and coatings industry worldwide. Its toothed disc blade rotates at tip speeds of 1,000–1,500 rpm, generating intense turbulent flow and hydraulic shear that rapidly incorporates pigments, fillers and additives into the liquid vehicle — breaking down agglomerates and producing a uniform, stable dispersion without grinding media.
- Hydraulic lifting with high-pressure oil cylinder
- Variable frequency drive (VFD), 0–1,500 rpm
- Suitable for 50L to 5,000L batch sizes
- SS304 shaft and dispersing disc
- Hand-wheel tank clamping arm
- Explosion-proof (Ex-proof) configuration available
- Vacuum cover option to reduce foaming
Multi-Shaft Mixer
For high-viscosity mill bases, paste coatings and specialty formulations that exceed the working range of a single-shaft disperser, the multi-shaft mixer combines a central high-speed dispersing shaft with one or more low-speed anchor or helical agitators. This combination ensures thorough bulk movement of high-viscosity material while maintaining high shear dispersion at the disc — eliminating dead zones and delivering consistent quality even in dense, paste-like formulations.
- Dual or triple shaft configurations
- High-speed dispersing disc + low-speed anchor agitator
- Handles viscosities up to 500,000 cps and above
- Heating & cooling jacket available
- Vacuum option for defoaming
- Variable speed on all shafts independently
- Suitable for epoxy, putty and textured coatings
Browse Our Paint & Coating Mixing Equipment
Explore LRMIX equipment for paint, coating and construction chemical production:
Why Choose LRMIX for Paint & Coating Mixing Equipment?
Get a Free Quote for Your Paint & Coating Mixer
Tell us your coating type, viscosity range and required capacity.
Our engineering team will recommend the most suitable disperser configuration.
