Chemical Industry Mixer
High-Speed Dispersers & Multi-Shaft Mixers for Chemical Manufacturing
The chemical industry encompasses one of the broadest and most demanding ranges of mixing applications in manufacturing. From low-viscosity solvent-based formulations to ultra-high-viscosity resins and pastes, achieving consistent dispersion, homogenisation and reaction efficiency depends entirely on selecting the correct mixing equipment. LRMIX high-speed dispersers, multi-shaft mixers and ribbon blenders cover the full viscosity spectrum of chemical production — from pigment dispersion at a few hundred centipoise to sealant compounding at over 1,000,000 cP.
Chemical Applications Requiring Industrial Mixing Equipment
Chemical manufacturers require different mixing technologies depending on the nature of their product. Understanding which mixing mechanism suits which application is the first step in selecting the right equipment.
Matching Mixer to Viscosity: The Key Selection Principle
In chemical processing, viscosity is the primary factor determining which mixer type is appropriate. Using the wrong mixer for a given viscosity range leads to poor dispersion quality, excessive energy consumption and shortened equipment life.
| Viscosity Range | Recommended Equipment | Typical Chemical Applications |
|---|---|---|
| 500 – 50,000 cP | High-Speed Disperser (single shaft) | Water-based paints, solvent inks, light adhesives, agrochemical emulsions |
| 50,000 – 500,000 cP | Dual-Shaft Mixer (disperser + anchor) | High-solid coatings, paste adhesives, filled resins, sealant bases |
| 500,000 – 5,000,000 cP | Triple-Shaft / Multi-Shaft Mixer | Structural adhesives, epoxy compounds, thick sealants, battery electrode slurries |
| Dry Powder / Free-flowing | Horizontal Ribbon Blender | Powder coatings, chemical premixes, filler blends, granule mixtures |
In many chemical production lines, a high-speed disperser handles the initial pigment or filler wetting and deagglomeration stage, while a multi-shaft mixer manages the subsequent high-viscosity compounding step. This two-stage approach maximises both dispersion quality and production efficiency. LRMIX supplies both equipment types and can advise on combined process configurations.
LRMIX Mixing Equipment for Chemical Production

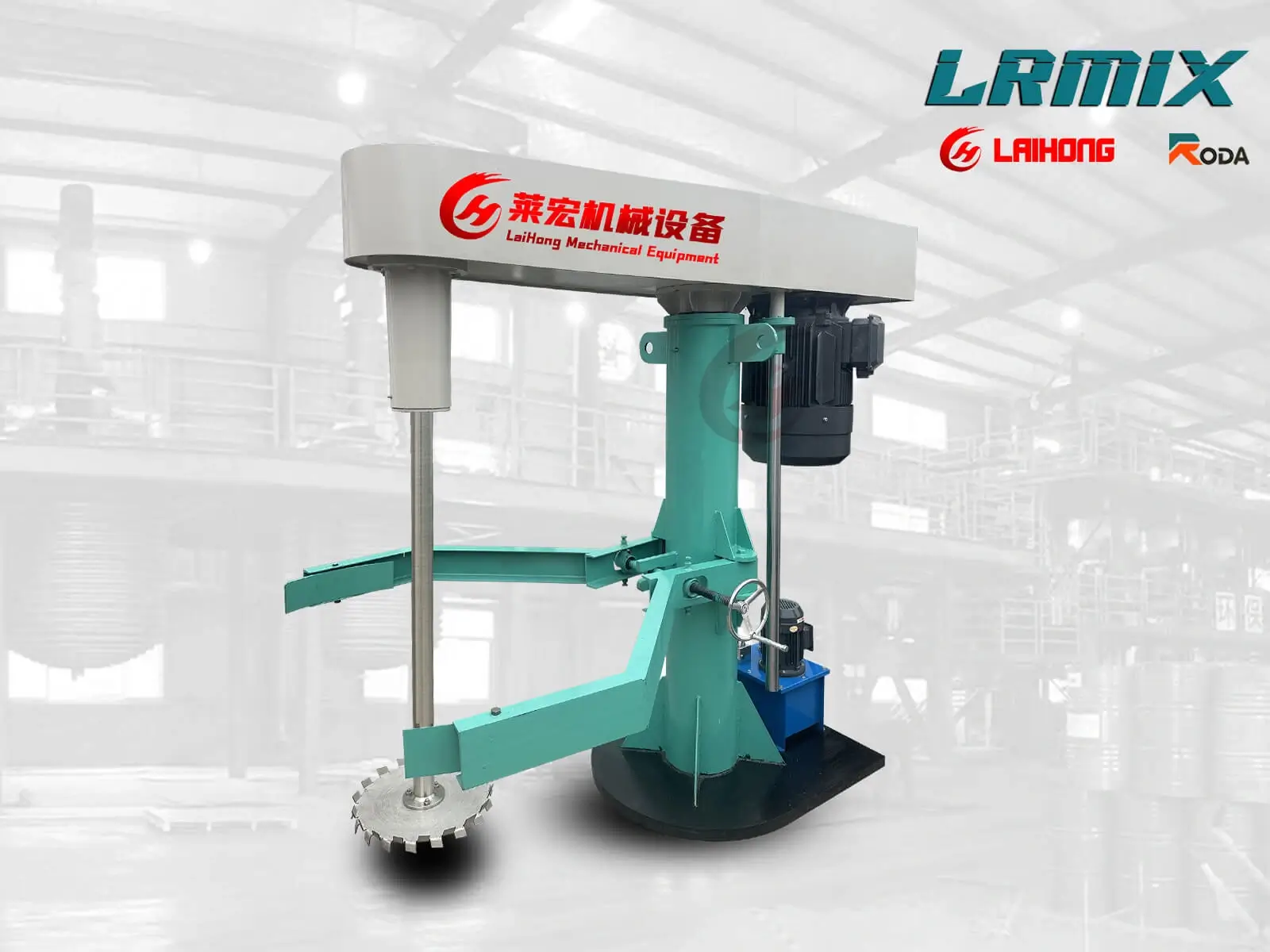

High-Speed Disperser
The standard workhorse of liquid-phase chemical mixing. A toothed Cowles-type blade rotates at tip speeds of 15–25 m/s, generating intense shear that wets out and deagglomerates solid particles into the liquid carrier. Suitable for pigment dispersion, filler incorporation, emulsification and dissolution across a wide range of chemical formulations.
- Tip speed up to 25 m/s — efficient deagglomeration
- Hydraulic lifting for multi-tank operation
- Variable speed with frequency inverter control
- Explosion-proof motor option for solvent-based products
- Vacuum model available for bubble-sensitive formulations
- Capacities: 50L to 5,000L vessels

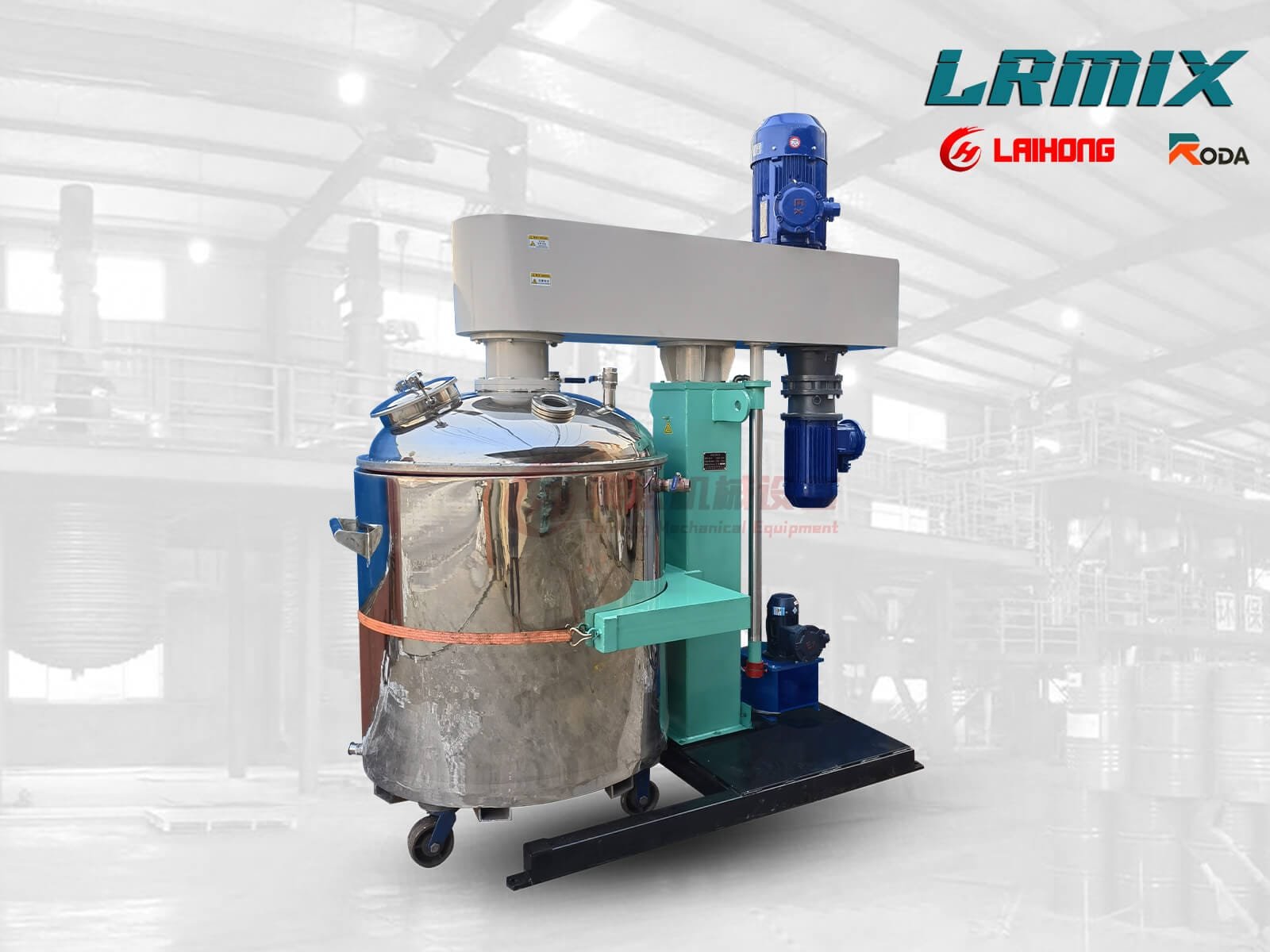

Multi-Shaft Mixer
When product viscosity exceeds the capability of a single-shaft disperser, multi-shaft mixers combine two or three independently driven shafts in a single vessel — typically a slow-speed anchor or gate agitator for bulk movement, plus one or two high-speed disperser shafts for localised shear and dispersion. This combination handles viscosities from 50,000 cP to over 5,000,000 cP.
- Dual-shaft: anchor agitator + high-speed disperser
- Triple-shaft: anchor + disperser + homogeniser
- Jacketed vessel for heating or cooling
- Vacuum degassing capability
- Handles paste-like materials up to 5,000,000 cP
- Capacities: 20L to 3,000L
LRMIX Chemical Industry Mixer Range
High-Speed Disperser Range
Single-shaft hydraulic lifting dispersers for paints, coatings, inks, adhesives and chemical formulations. Multiple vessel sizes available, explosion-proof options included.
View All Models
Multi-Shaft Mixer Range
Dual and triple-shaft mixers for high-viscosity chemical compounding. Combines bulk movement with intensive disperser shear — handles materials up to 5,000,000 cP.
View All Models
Ribbon Blender Range
Horizontal ribbon blenders for dry powder chemical mixing — powder coatings, filler blends, chemical premixes and granule homogenisation. Capacities from 100L to 10,000L.
View All ModelsWhy Chemical Manufacturers Choose LRMIX
Need a Mixer for Your Chemical Production?
Tell us your material viscosity, batch size and process requirements.
LRMIX will recommend the right disperser or mixer configuration — factory direct.
