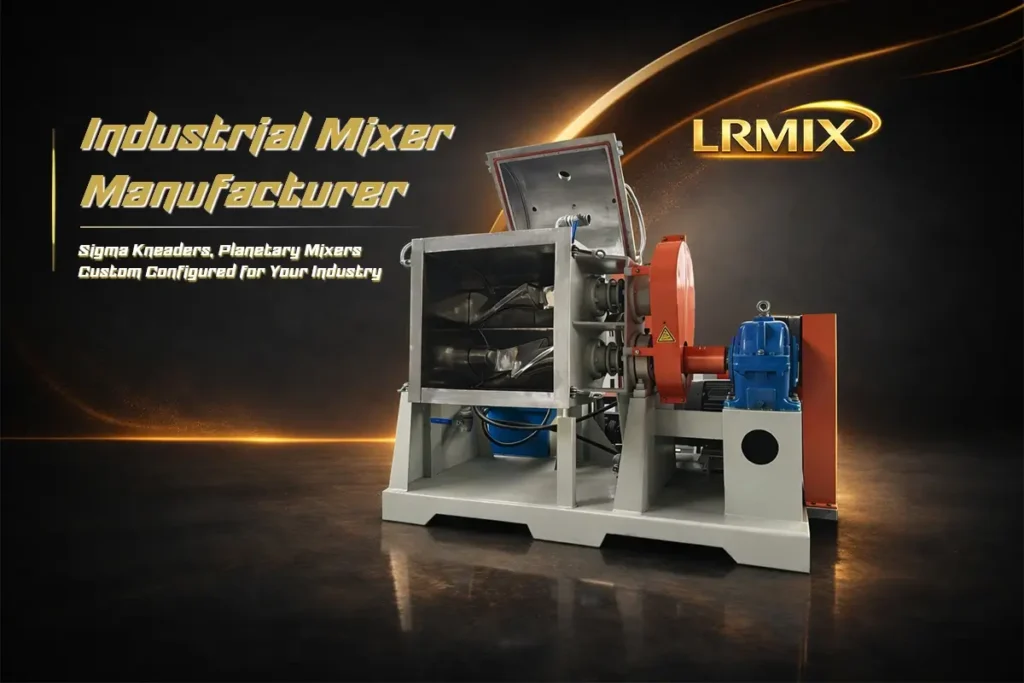

100L Vacuum Hydraulic Kneader for Silicone Rubber Mixing | LRMIX Sigma Kneader Machine
When silicone rubber manufacturers choose a sigma kneader machine, three process requirements always come first: temperature control, bubble-free compound, and efficient discharge. This article introduces LRMIX’s 100L vacuum hydraulic tilt sigma kneader — a machine configured specifically to meet all three requirements in a single unit.
Why Silicone Rubber Demands a Specialized Kneader Machine
Silicone rubber compounding is among the most demanding mixing applications for any kneader machine. Unlike rubber or adhesive mixing, silicone compounding involves:
- High initial viscosity — silicone gum (polydimethylsiloxane base polymer) has extremely high molecular weight and requires enormous torque to initiate mixing
- Heat-sensitive vulcanizing agents — peroxide curatives such as DCP must be added at temperatures below 40°C; premature activation causes scorching and batch loss
- Bubble entrapment — fumed silica filler entraps large volumes of air during incorporation; if not removed, these bubbles cause voids and surface defects in finished silicone products
- Difficult discharge — fully compounded silicone rubber is highly adhesive and resistant to gravity flow, making manual discharge slow and wasteful
A standard kneader machine without vacuum capability, cooling, and hydraulic tilt discharge is simply not adequate for production-grade silicone rubber compounding.
Machine Specifications: 100L Vacuum Hydraulic Kneader
| Parameter | Specification |
|---|---|
| Effective Volume | 100 Litres |
| Main Motor | 15 kW |
| Gear Reducer | ZLY Hard-Tooth Face (HRC 58–62) |
| Temperature Control | Cooling Water Jacket |
| Vacuum System | ≥ –0.09 MPa |
| Discharge Method | Hydraulic Tilt, 130° |
| Blade Type | Sigma (Σ) Z-blade |
| Vessel Material | Carbon Steel / SS304 Optional |
| Batch Capacity | 60–70 kg silicone gum per batch |
How Each Configuration Solves a Real Production Problem
ZLY Hard-Tooth Gear Reducer → Handles Peak Torque Without Failure
The ZLY series hard-tooth face gear reducer uses carburizing and quenching heat treatment, achieving surface hardness of HRC 58–62. Load-bearing capacity is over 40% higher than conventional soft-tooth reducers. For silicone rubber compounding — where peak torque during initial gum loading can reach three to four times the running torque — this is not a luxury specification. It is a reliability requirement.
Cooling Water Jacket → Prevents Scorching, Protects Your Batch
Sigma blade action generates significant frictional heat, particularly during the fumed silica incorporation stage. Without active cooling, vessel temperature rises above 60–70°C within minutes. At these temperatures, peroxide vulcanizing agents begin to activate — causing scorch. The cooling jacket circulates chilled water through the vessel wall, maintaining compound temperature below 50°C throughout the mixing cycle. This is the difference between a consistent batch and a scrapped one.
Vacuum System (≥ –0.09 MPa) → Eliminates Bubbles, Ensures Product Quality
After the fumed silica is fully incorporated, the kneader is sealed and the vacuum pump evacuates air from the compound to ≥ –0.09 MPa for 10–15 minutes. This step is non-negotiable for applications requiring void-free silicone: medical-grade tubing, food-contact silicone, optical potting compounds and high-specification silicone seals. No post-processing step can reliably remove bubbles that are already locked into the cured compound.
Hydraulic Tilt Discharge (130°) → 5× Faster Discharge, Minimal Waste
The vessel tilts hydraulically to 130°, allowing the compounded silicone rubber to flow out under gravity with minimal manual assistance. Compared to manual discharge methods, hydraulic tilt reduces discharge time from 15–20 minutes to under 3 minutes per batch, and significantly reduces material loss from residue left in the vessel.
Suitable Applications
This 100L vacuum hydraulic kneader is used in the following silicone rubber production scenarios:
- General-purpose silicone rubber compounding — silicone strips, tubing, sheeting, moulded parts
- Thermal interface materials — incorporating alumina, boron nitride and other thermally conductive fillers into silicone matrix
- Medical and food-grade silicone — where zero bubble tolerance demands vacuum processing
- Flame-retardant silicone compounds — incorporating aluminium hydroxide, magnesium hydroxide and other functional fillers
- Silicone colour masterbatch — uniform pigment dispersion in silicone gum base
Contact LRMIX for Your Sigma Kneader Configuration
LRMIX supplies sigma kneader machines from 5L laboratory scale to 3,000L production capacity. Standard and non-standard configurations are available, including explosion-proof, steam heating, electric heating, and SS316L food-grade options.
